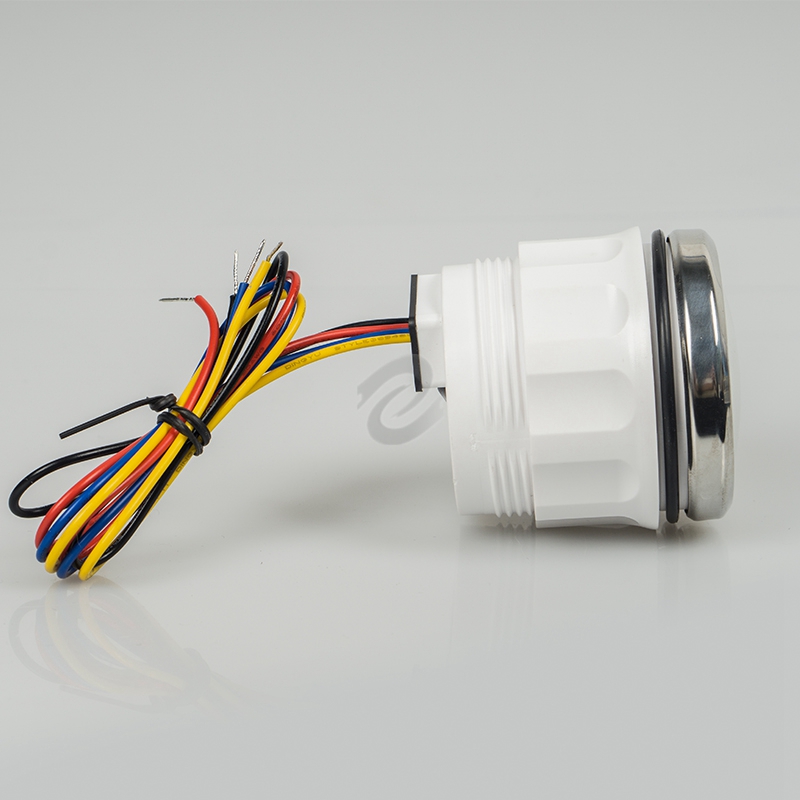

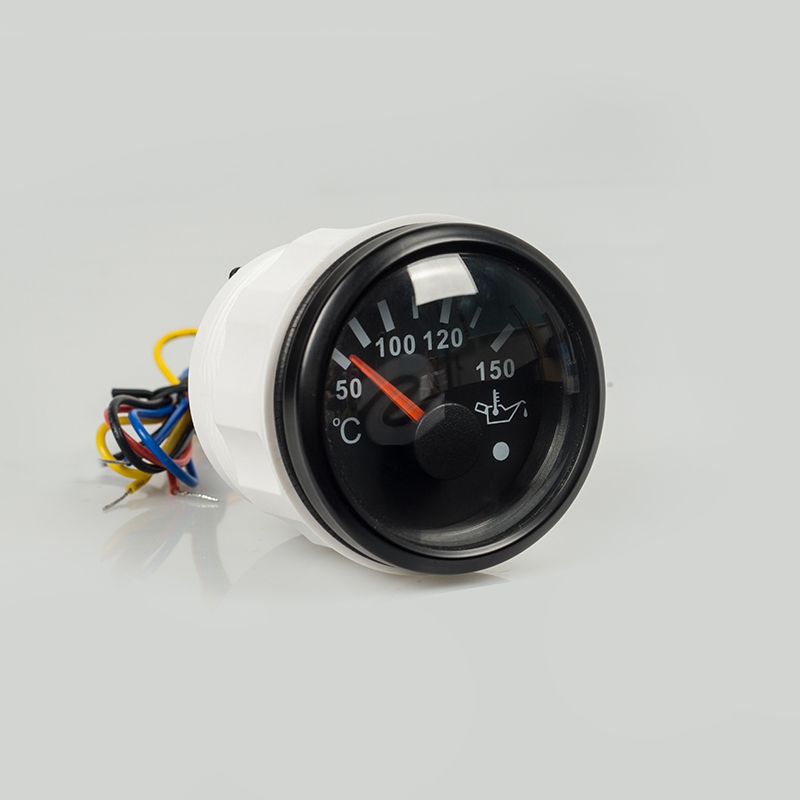

Oil Temperature Gauge 50~150℃ 52mm 9-32V

Name: Black Engine Control Box Speed Water Temperature Oil Pressure Voltage Oil Temperature Oil Level 9-32V
Brand: EOSIN
Rating: 5.0 (44 reviews)

OIL TEMPERATURE GAUGES

Quantity:
Availability:





Inquire

ModelYS-031

Nominal size52 mm

Supply voltage8–32 V DC

DisplayAnalogue pointer

Dial scale50–150 °C

Mounting hole52 mm

HousingABS

LensConvex glass

MountingSpin Lock

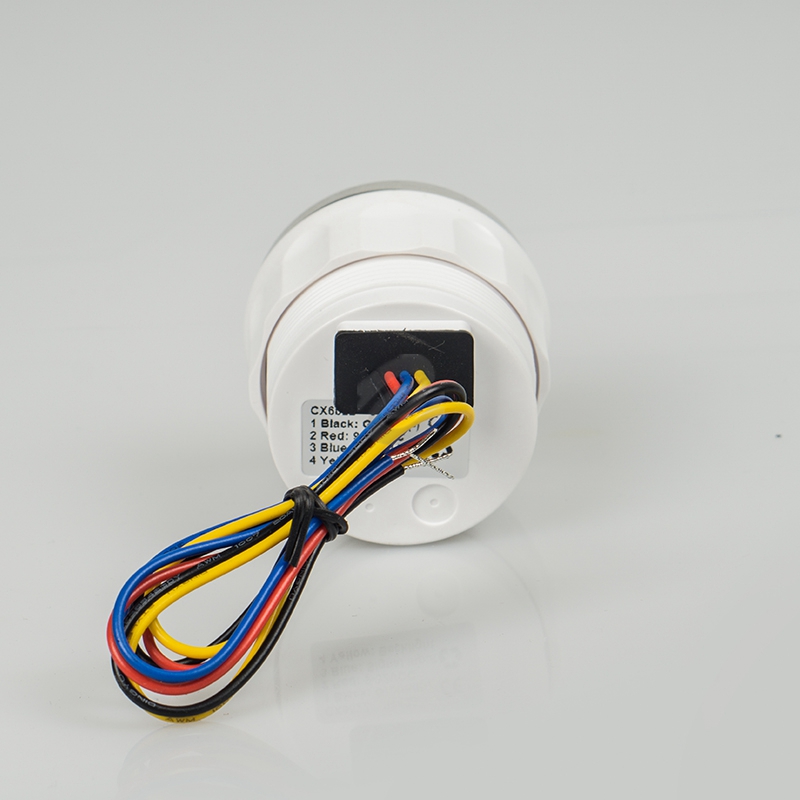

ConnectorXH2.54 wired connector

AppearanceSilver bezel, black dial

Signal input322–18.6 Ω

This 52 mm oil temperature gauge has a 50–150 °C pointer scale, a silver bezel and a black dial. The oil temp gauge provides a clear temperature reading at the instrument panel, with the engine oil temperature gauge supplied by an 8–32 V DC system.

Specifications
Model	YS-031
Nominal size	52 mm
Supply voltage	8–32 V DC
Dial scale	50–150 °C
Mounting hole	52 mm
Connector	XH2.54 wired connector
Appearance	Silver bezel, black dial
Signal input	322–18.6 Ω

Previous: Construction Vehicles Instrument Oil Temp Gauges for Truck 250°C

Next: EOSIN YS-031 52mm Oil Temperature Gauge 50–150 °C Silver Bezel White Dial

oil temperature gauge oil temp gauge engine oil temperature gauge
