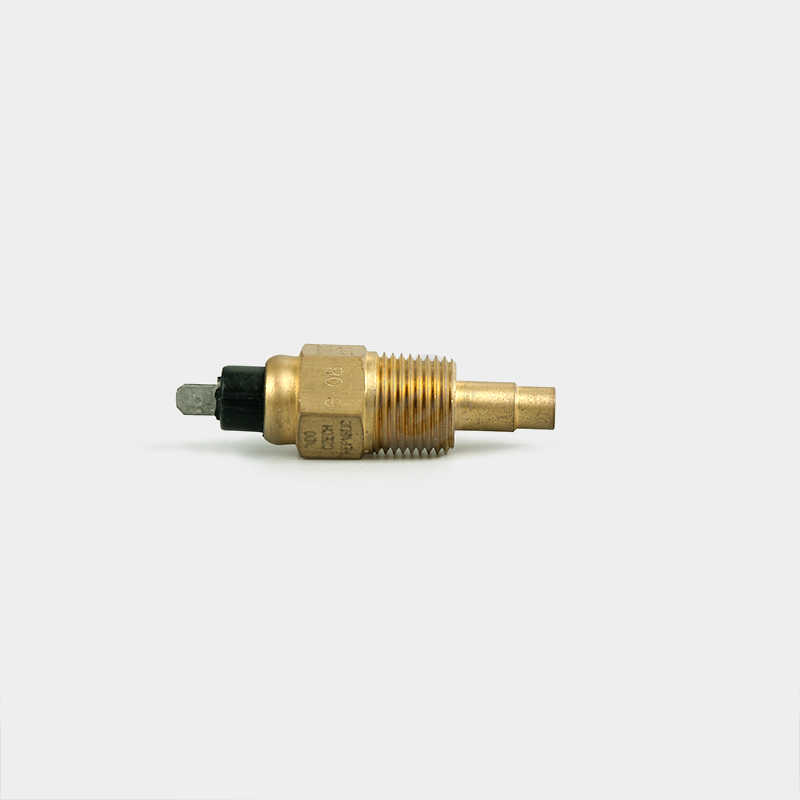

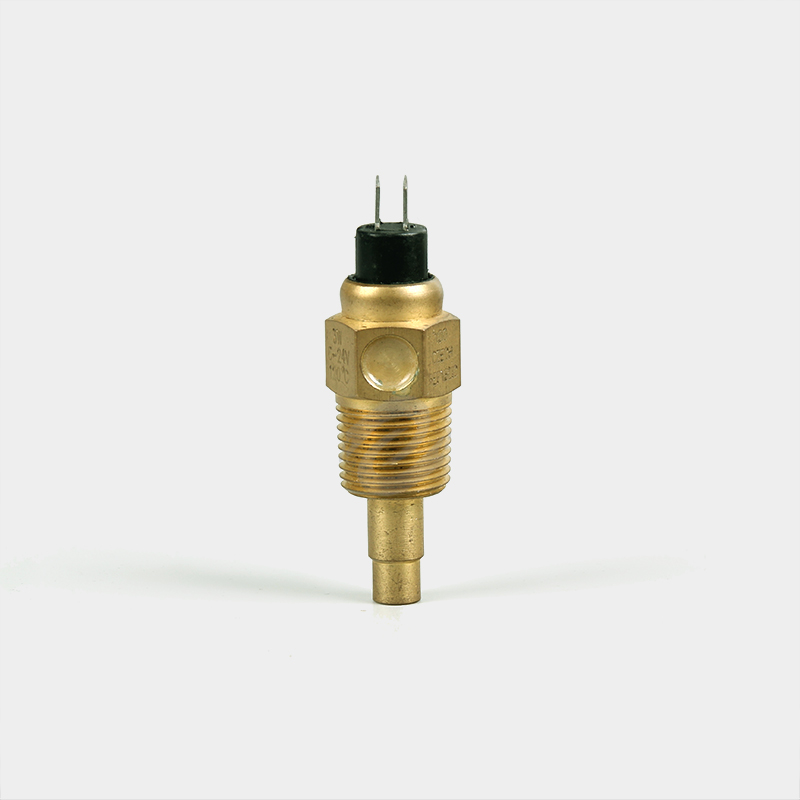

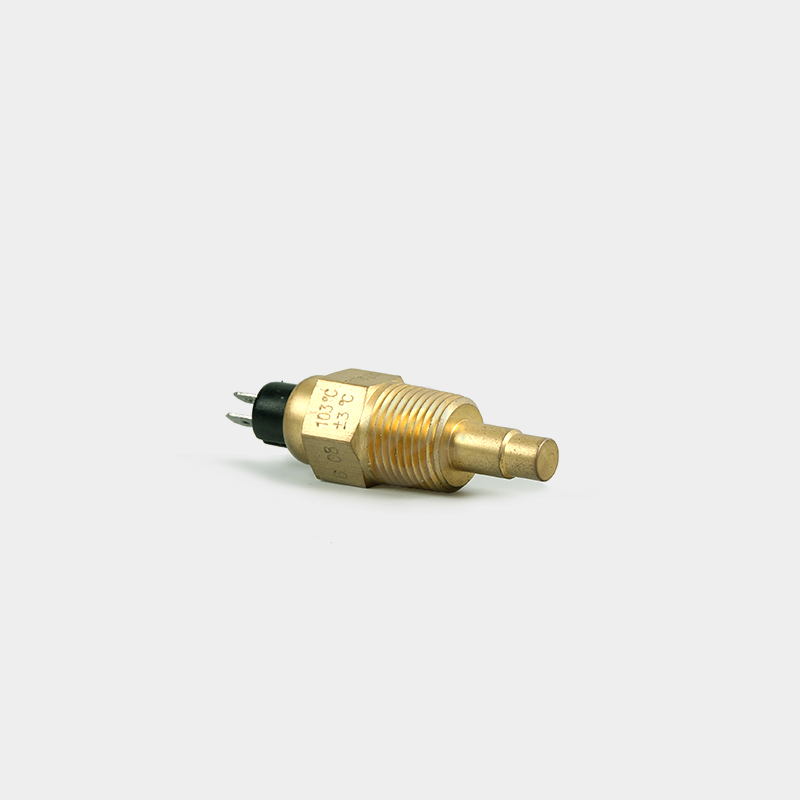

Mechanical 2 Pin ESSW-09 Water Temperature Sensor for Automotive

Name: Black Engine Control Box Speed Water Temperature Oil Pressure Voltage Oil Temperature Oil Level 9-32V
Brand: EOSIN
Rating: 5.0 (44 reviews)

WATER TEMPERATURE SENSORS

Quantity:
Availability:





Inquire

Temperature range
0~120°C
Thread
1/2 – 14 NPTF
Warning contact
103±3°C
Resistance
287.4-22.7 Ω
Grounding
Common Ground
Terminals
2 blade terminals
Signal input

EOSIN 323-803-001-025D

The EOSIN 323-803-001-025D water temperature sensor provides a temperature-dependent resistance signal for a matched gauge. This water temperature sender is used for engine coolant monitoring. Select the coolant temperature sensor by its thread, resistance characteristic and warning-contact specification.

Product specifications
Model	323-803-001-025D
Temperature range	0~120°C
Thread	1/2 – 14 NPTF
Resistance specification	287.4-22.7 Ω
Warning contact	103±3°C
Rated electrical conditions	6 V to 24 V
Grounding	Common Ground
Terminal configuration	2 blade terminals
Signal input
