Eosin Universal Oil Pressure Sensor with 2 Pin 5 Bar for Genset

Name: Black Engine Control Box Speed Water Temperature Oil Pressure Voltage Oil Temperature Oil Level 9-32V
Brand: EOSIN
Rating: 5.0 (44 reviews)

OIL PRESSURE SENSORS

Quantity:
Availability:





Inquire

Pressure range
0-5 bar
Thread
M10 x 1 con. short
Warning contact
0.5 ± 0.15 bar
Resistance
10-184 Ω
Grounding
Common Ground

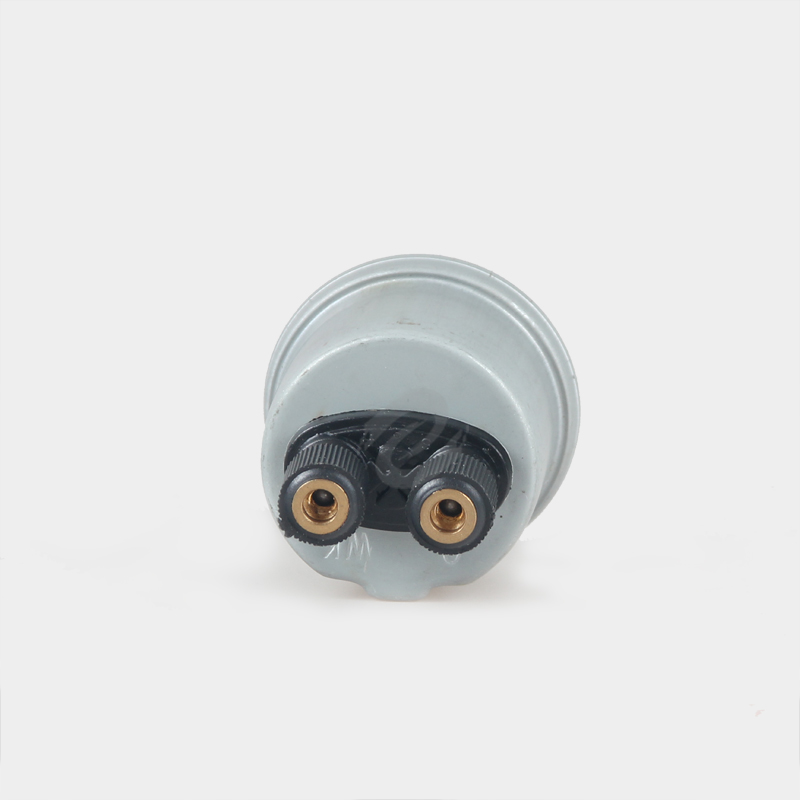

Terminals
2 capped threaded terminals
Signal input

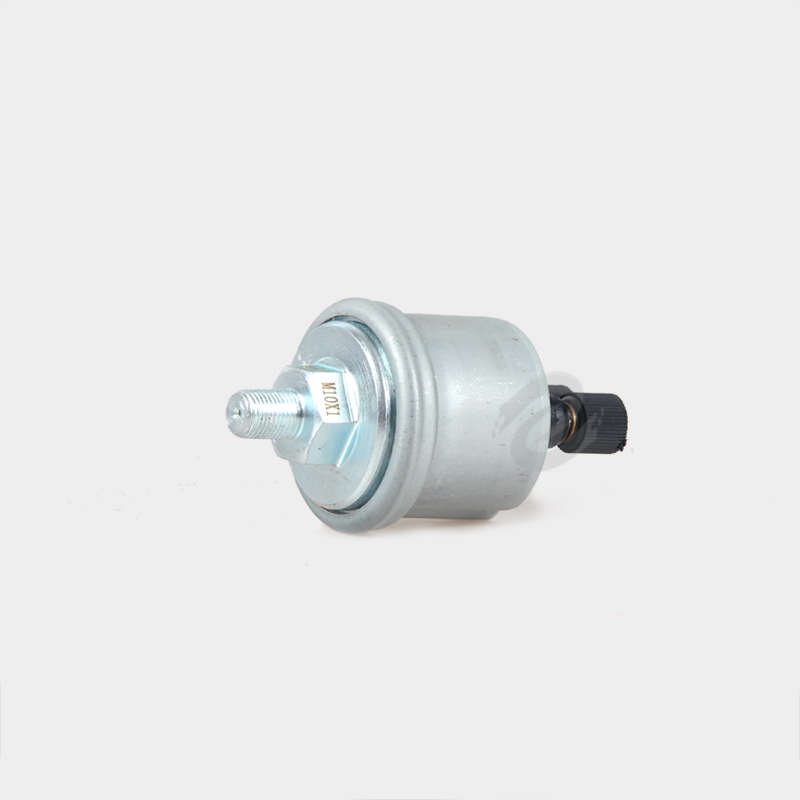

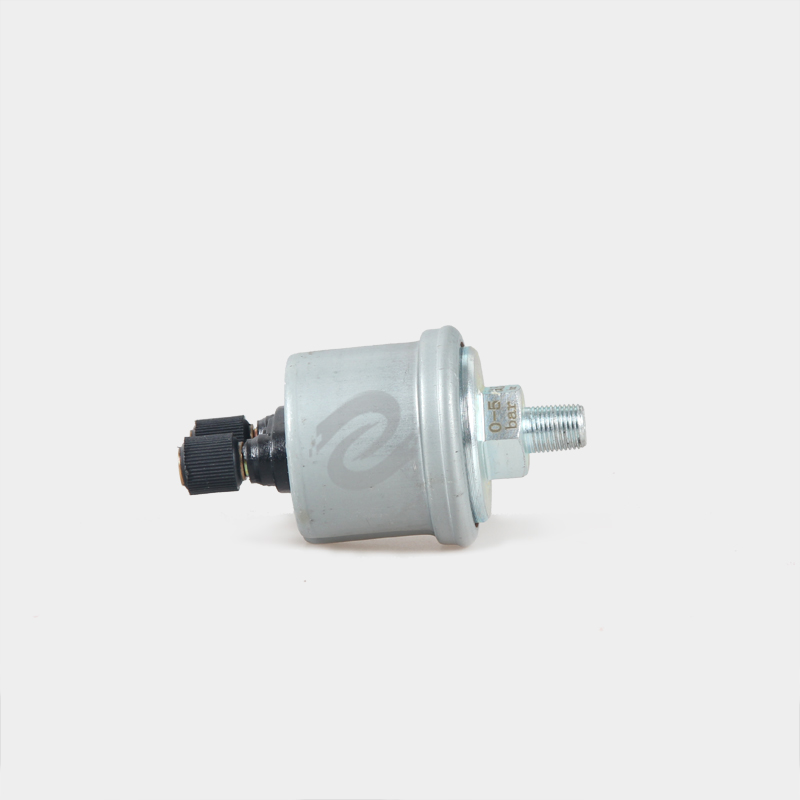

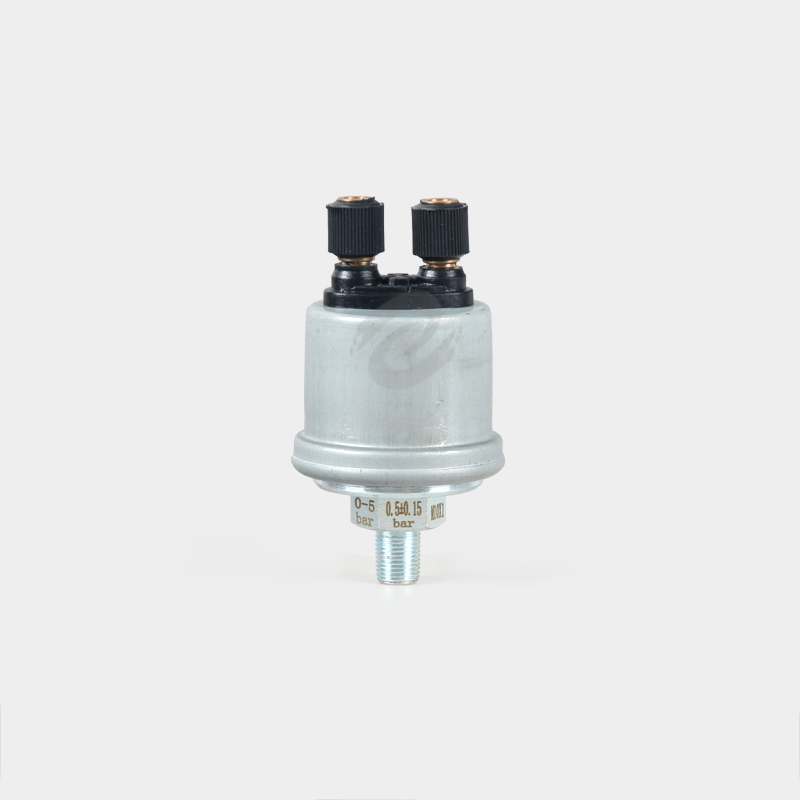

EOSIN 360-081-030-002C

The EOSIN 360-081-030-002C oil pressure sensor provides a resistive signal for a matched pressure gauge. This oil pressure sender is used for engine oil pressure monitoring. Select the oil pressure sending unit by its pressure range, thread and resistance specification.

Product specifications
Model	360-081-030-002C
Pressure range	0-5 bar
Thread	M10 x 1 con. short
Resistance specification	10-184 Ω
Warning contact	0.5 ± 0.15 bar
Rated electrical conditions	6 V to 24 V
Grounding	Common Ground
Terminal configuration	2 capped threaded terminals
Signal input

Previous: Eosin Universal Aem Oil Pressure Sensor with 2 Pin for Genset

Next: Eosin Oem Autometer Oil Pressure Sensor with 2 Pin 5 Bar for Generator

oil pressure sensor oil pressure sender oil pressure sending unit

Eosin Universal Oil Pressure Sensor with 2 Pin 5 Bar for Genset

EOSIN 360-081-030-002C
