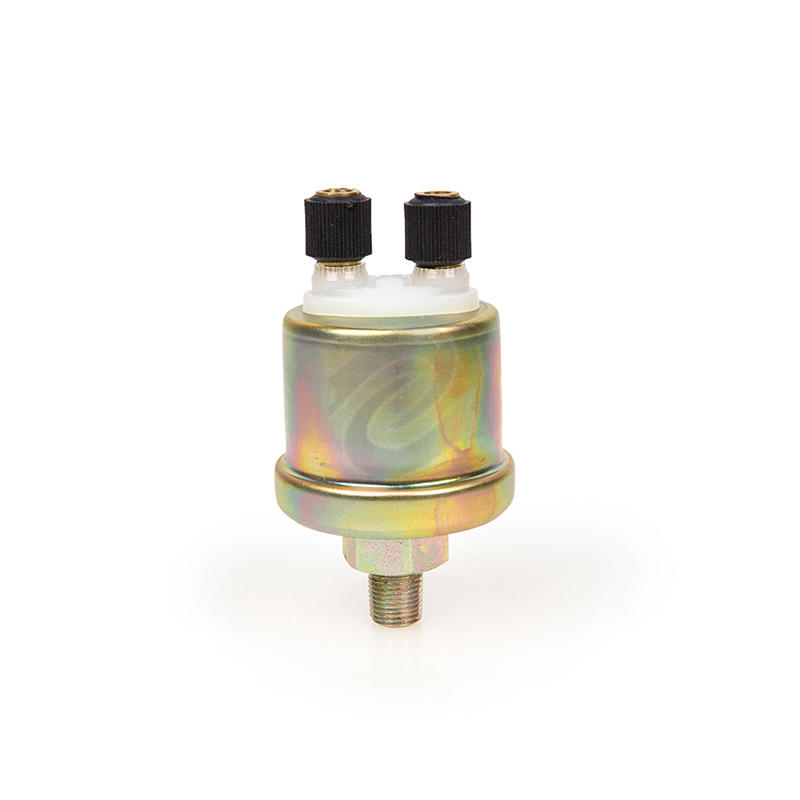

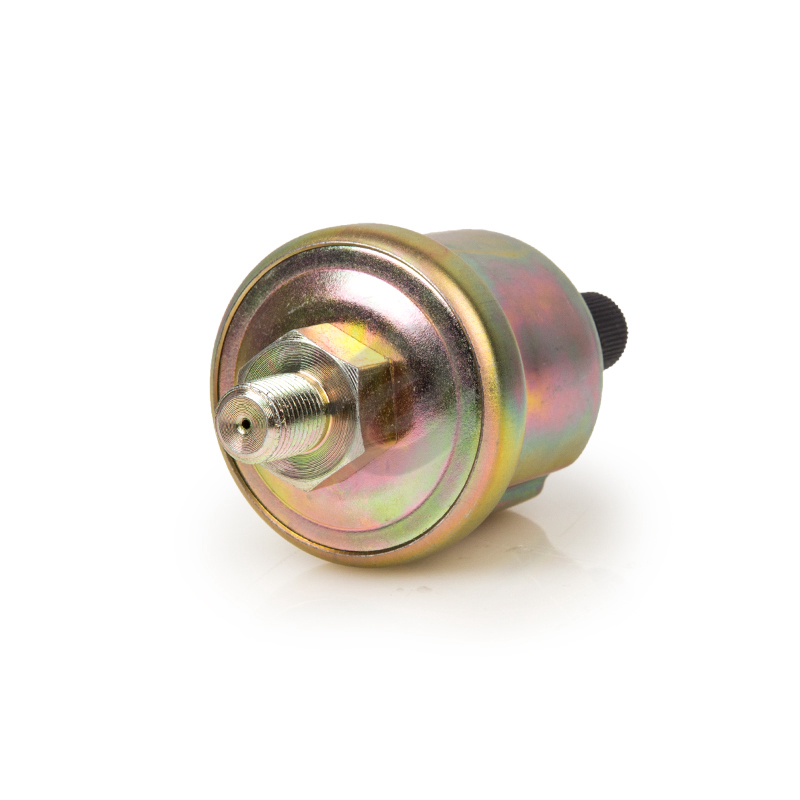

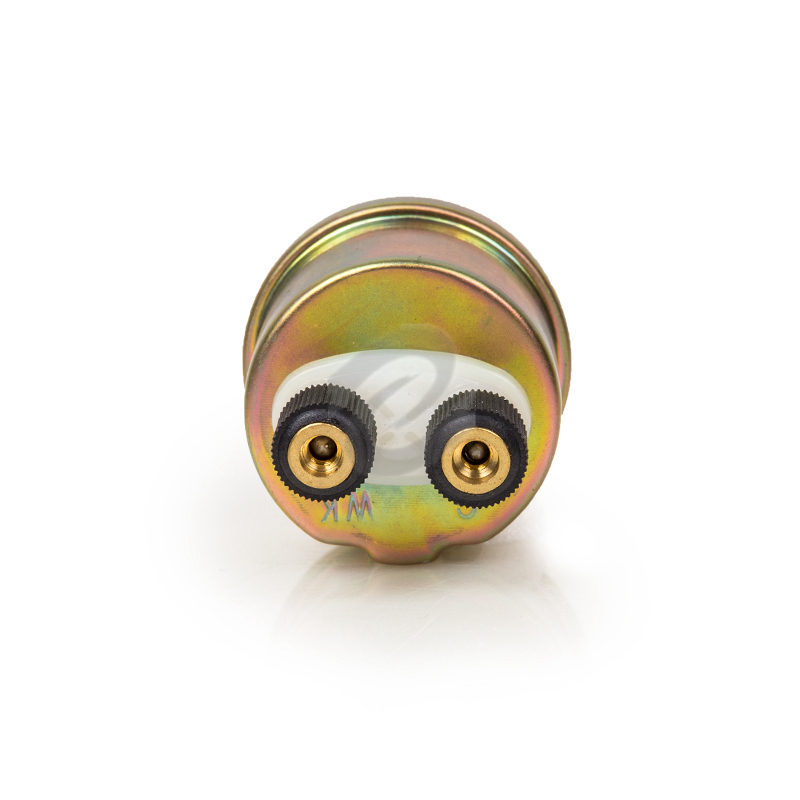

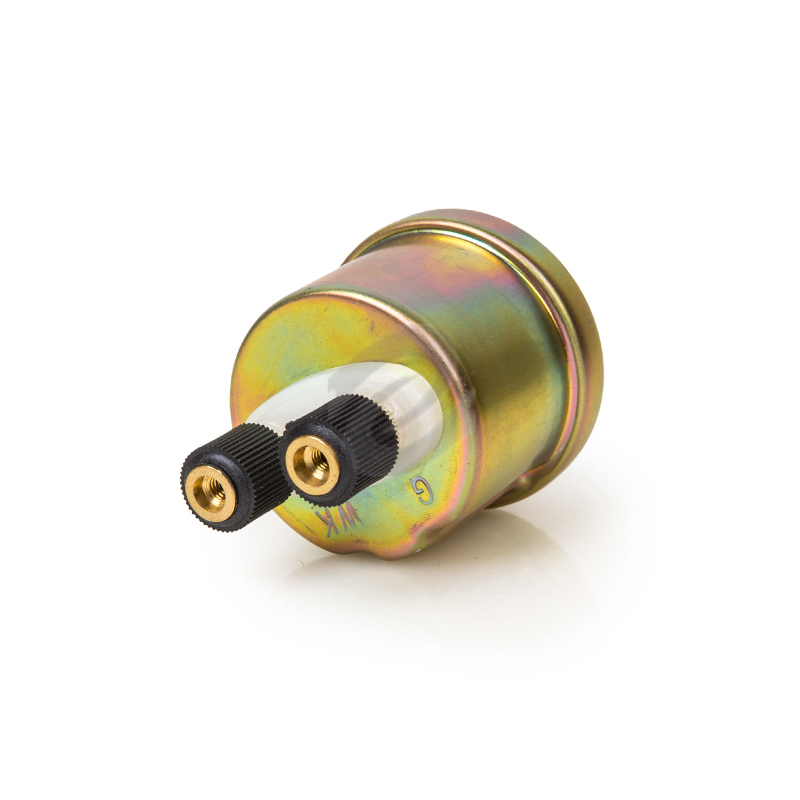

OIL PRESSURE SENSORS
| Quantity: | |
|---|---|
0265420217
M10 x 1 con. short
Not With
Spring Type
2 Pole
Standard Ground
For measuring different media in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is
supplied by a separate connection.Temperature senders can be fitted with anadditional warning contact in order to indicate when the temperature limit has
been reached, as well as carrying out continuous measurement.
Technical Data
| Version | Spring Type |
| Measuring Range | 0-10Bar |
| Rated Voltage | 6V to 24V |
| Warning Contact | Close As Pressure Falls |
| Switching Capacity Of Warning Contact | 5 W MAX, Non inductive |
| Operating Temperature | -25°C To +100°C |
| Resistance Range | 10 Ω to184 Ω |
| Connector | 2 Pole |
| Application | Marine,Construction Machines,Genset,Vehicles |
Installation Torque
| Thread Size | Max Torque(Nm) | Max Torque(Ft lb) |
| 1/8-27 NPTF | 30 | 22 |
| 1/4-18 NPTF | 60 | 44 |
| 3/8-18 NPTF | 60 | 44 |
| M10*1.0 | 30 | 22 |
| M12*1.0 | 40 | 29 |
| M14*1.5 | 60 | 44 |
| M16*1.5 | 80 | 59 |
| M18*1.5 | 100 | 74 |
