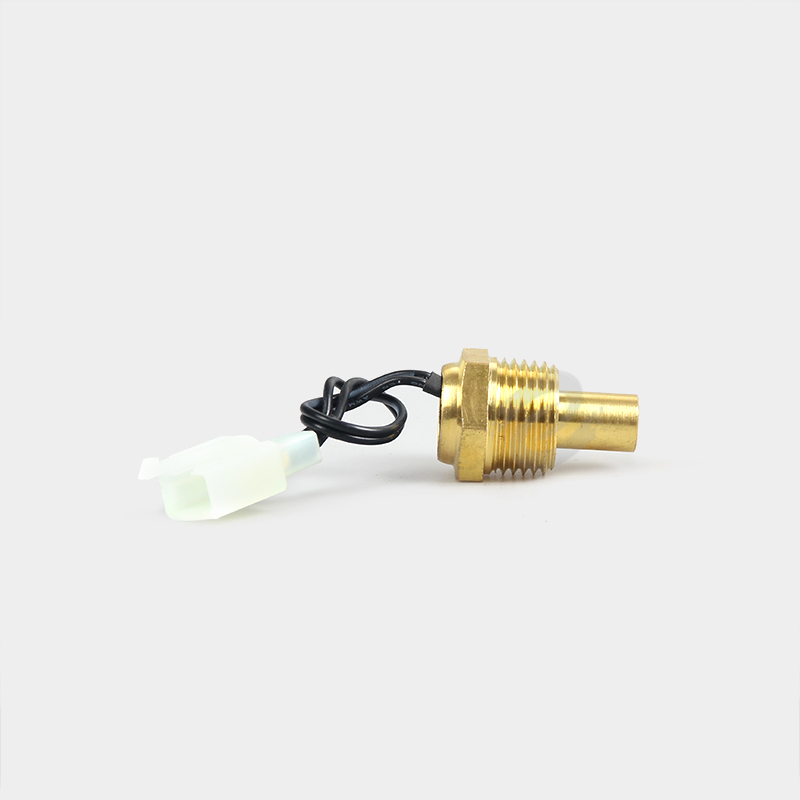

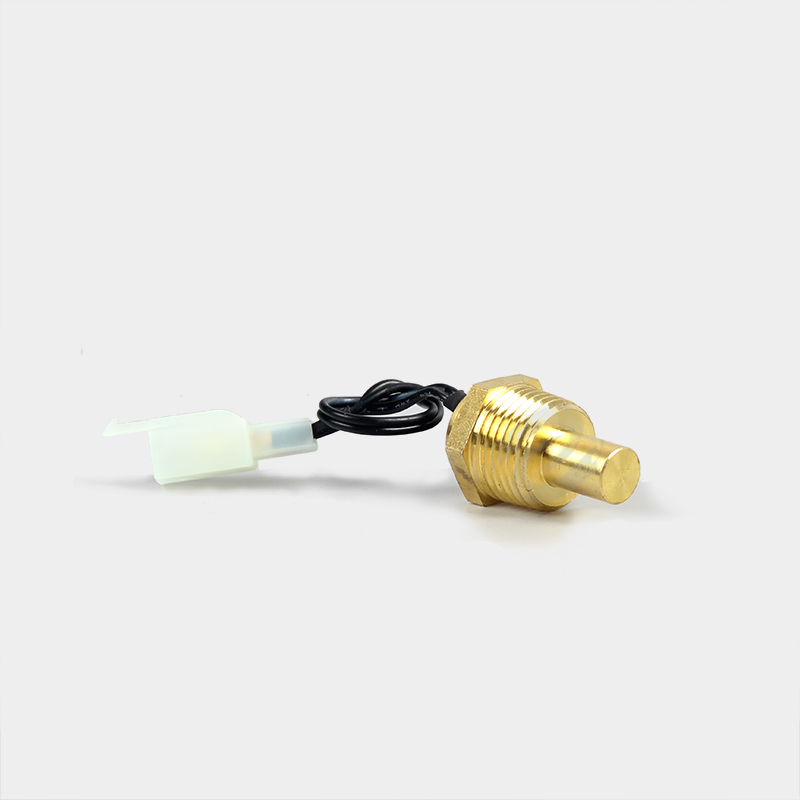

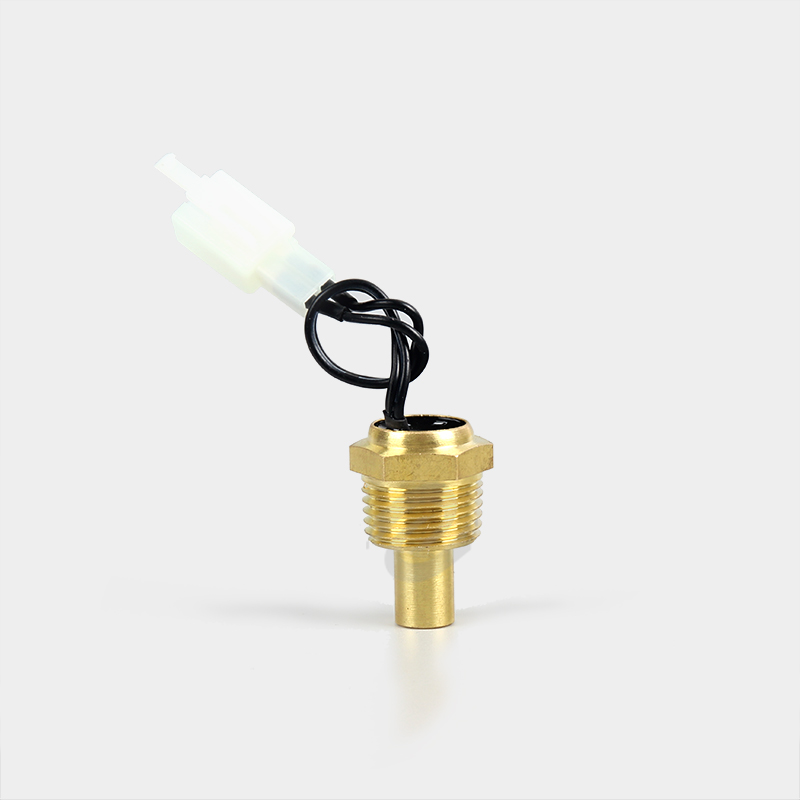

Customized Water Temperature Sensor for Engine

WATER TEMPERATURE SENSORS

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • NPT3/8

  • Not with

  • Thermistor (NTC)

  • 1 Pole

  • Standard Ground

Product Description


Engine Water Temperature Sensor Customized

For measuring different media in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is

supplied by a separate connection.Temperature senders can be fitted with an additional warning contact in order to indicate when the temperature limit has

been reached, as well as carrying out continuous measurement.

Technical Data

Version Thermistor (NTC)
Rated Voltage 6V to 24V
Temperature Conditioning Time 3 minutes minimum after switching on power supply
Switching Capacity 1.2W to 3W noninductive
Break Point 5°C max. below make point
Contacting Mode slow-acting
Connector 1 Pole
Application Marine Engines,Construction Machines,Genset,Vehicles

Standard Ground:sender case to common ground

Installation Torqque

Thread Size Max Torque(Nm) Max Torque(ft lb)
1/8-27 NPTF 10 7
1/4-18 NPTF 20 15
3/8-18 NPTF 30 22
1/2-14 NPTF 30 22
5/8-18 UNF-3A 20 15
M10*1.0 10 7
M12*1.5 15 11
M14*1.5 20 15
M16*1.5 30 22
M18*1.5 30 22

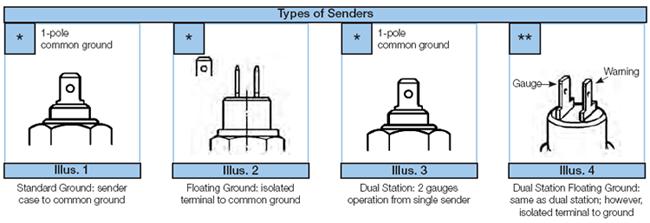

传感器资料1

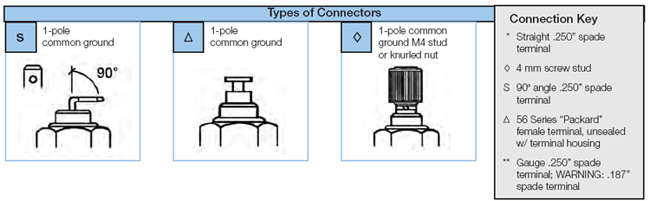

传感器资料2
