Eosin Digital Car Speedometer Sensors for Truck

SPEEDOMETER SENSORS

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Other

  • Not with

  • Spring Type

  • 4 Pole

  • Standard Ground

Product Description

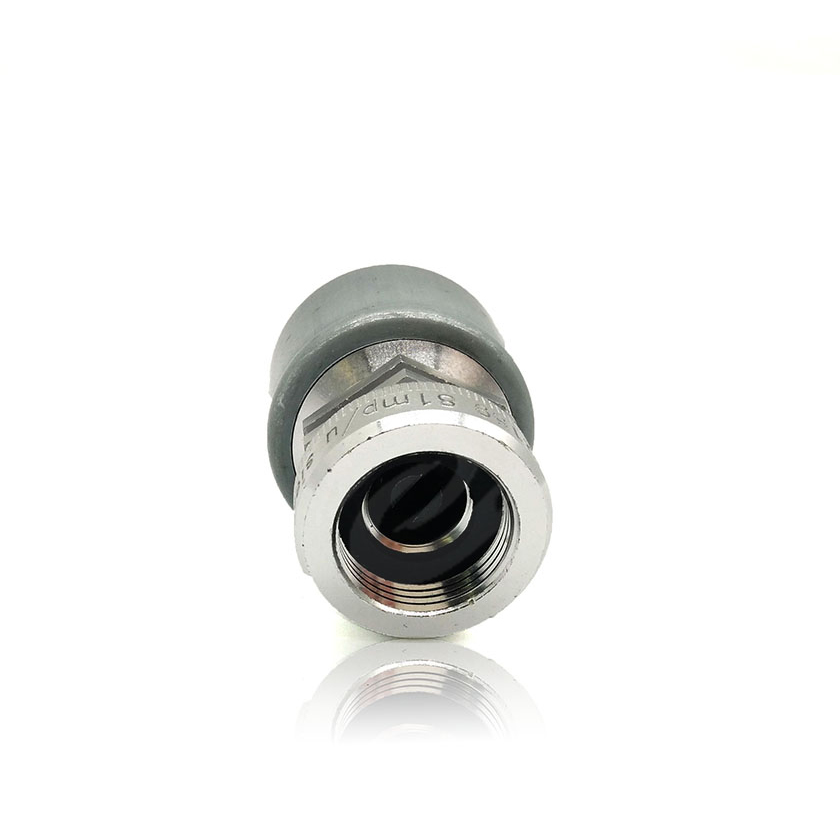

Eosin Car Odometer Sensor 340214004F

VDO odometer sensor for vehicles such as construction vehicles, buses, excavators, etc, the Sender Unit, integrated in the gearbox, transfers the number of revolutions of a gearwheel into electrical pulses. The revolutions are captured by means of a Hall IC. The pulses supplied by the Hall IC are used by tachographs and on-board computers for capturing the distance covered and the road speed.

Technical Date

Model



340214004F

Imp/Rpm


2 x 8 Pulse


Operating Voltage


8-36V


Connection Thread



7/8"-18UNF

Segment Lenght


/


Plug Shap


Rectangular

Application


Bus, Stery, Volvo


Features

● Touch-sensitive measuring procedure (Hall IC)

● Integrated in the gearbox

● Static measuring (zero-speed recognition)

● Double pulse (inverted)

● Can be sealed

● Can be directly connected to the vehicle electric system
