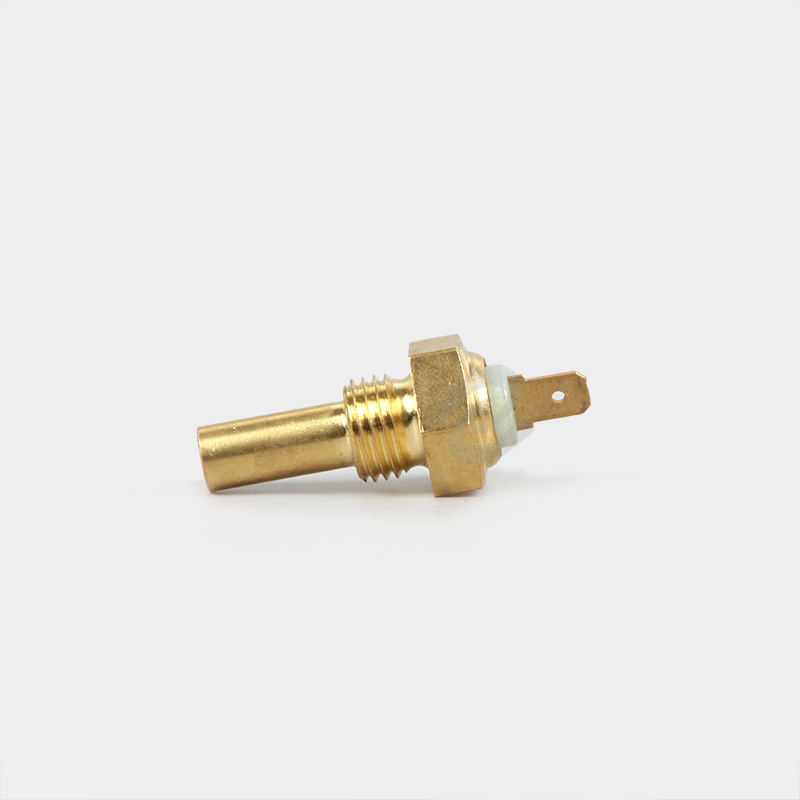

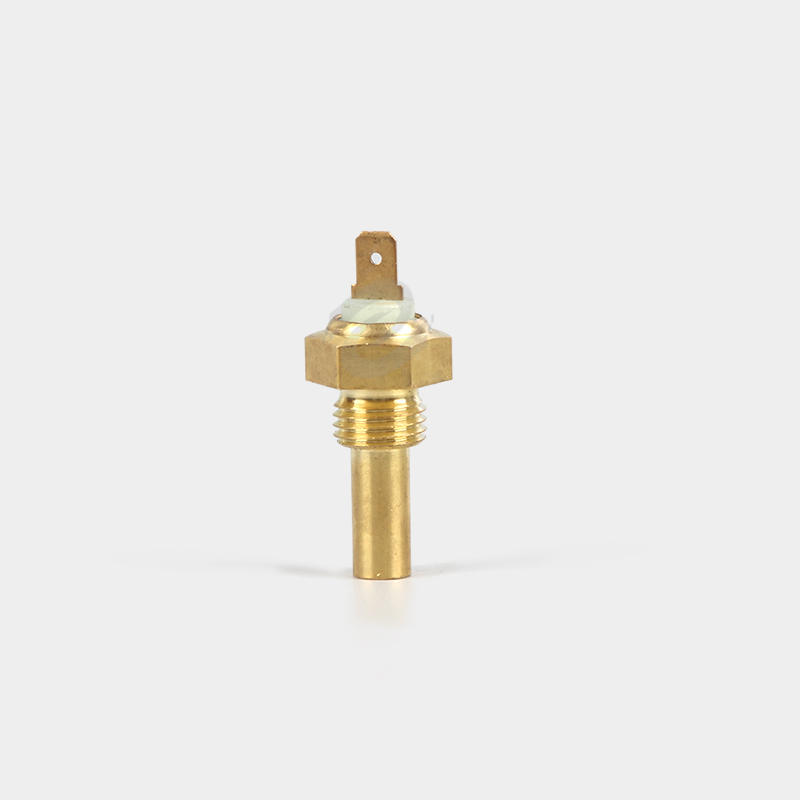

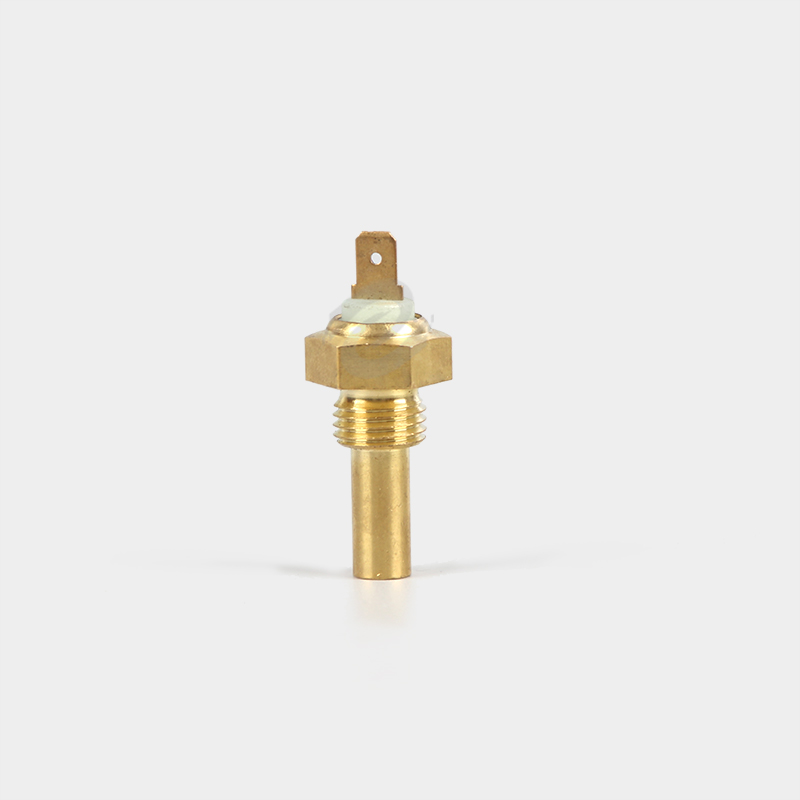

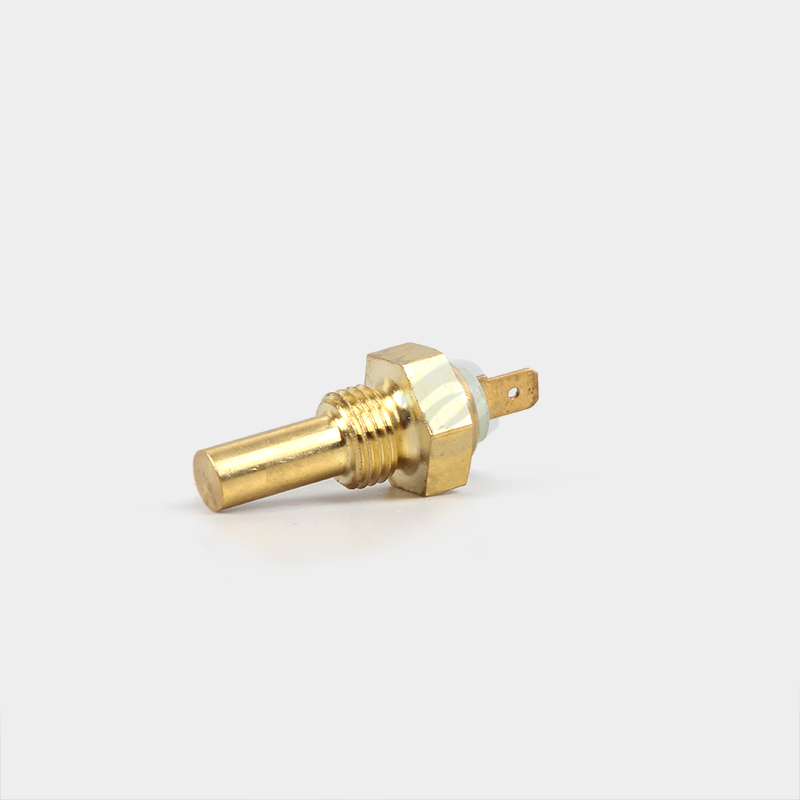

WATER TEMPERATURE SENSORS
| Quantity: | |
|---|---|
M14*1.5
Not with
Thermistor (NTC)
1 Pole
Standard Ground
For measuring different media in connection with an electrical display unit.
Some senders are earthed. Other senders are not earthed, i.e.
Earth is supplied by a separate connection.Temperature senders can be fitted with an
additional warning contact in order to indicate when the temperature limit has
been reached, as well as carrying out continuous measurement.
| Version | Thermistor (NTC) |
| Rated Voltage | 6V to 24V |
| Temperature Conditioning Time | 3 minutes minimum after switching on power supply |
| Switching Capacity | 1.2W to 3W noninductive |
| Break Point | 5°C max. below make point |
| ContResistance range | 10-180Ω |
| Connector | 1 Pole |
| Application | Marine Engines,Construction Machines,Genset,Vehicles |
For measuring different media in connection with an electrical display unit.
Some senders are earthed. Other senders are not earthed, i.e.
Earth is supplied by a separate connection.Temperature senders can be fitted with an
additional warning contact in order to indicate when the temperature limit has
been reached, as well as carrying out continuous measurement.
| Version | Thermistor (NTC) |
| Rated Voltage | 6V to 24V |
| Temperature Conditioning Time | 3 minutes minimum after switching on power supply |
| Switching Capacity | 1.2W to 3W noninductive |
| Break Point | 5°C max. below make point |
| ContResistance range | 10-180Ω |
| Connector | 1 Pole |
| Application | Marine Engines,Construction Machines,Genset,Vehicles |
