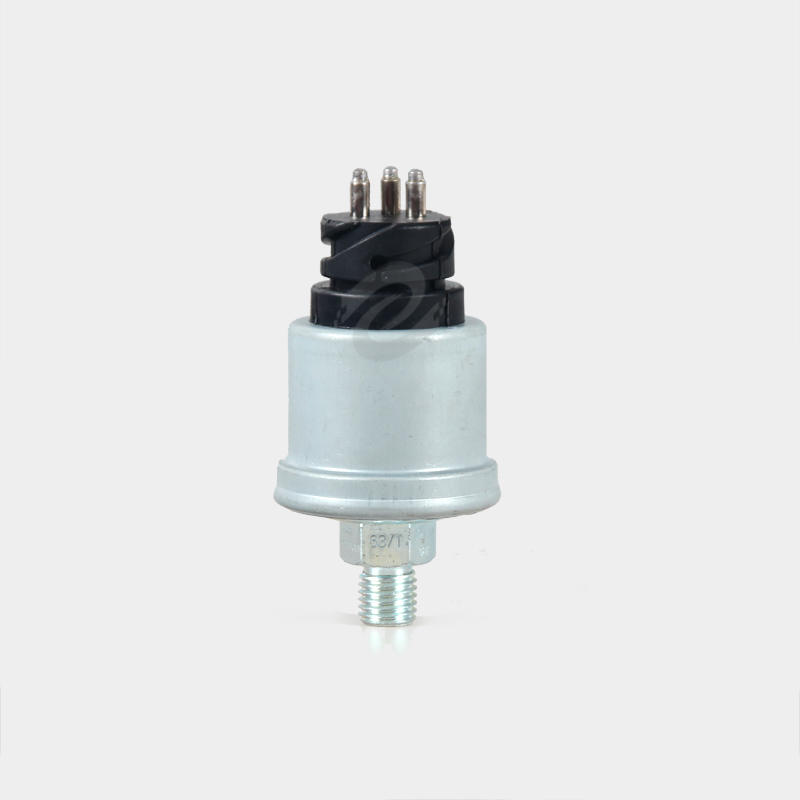

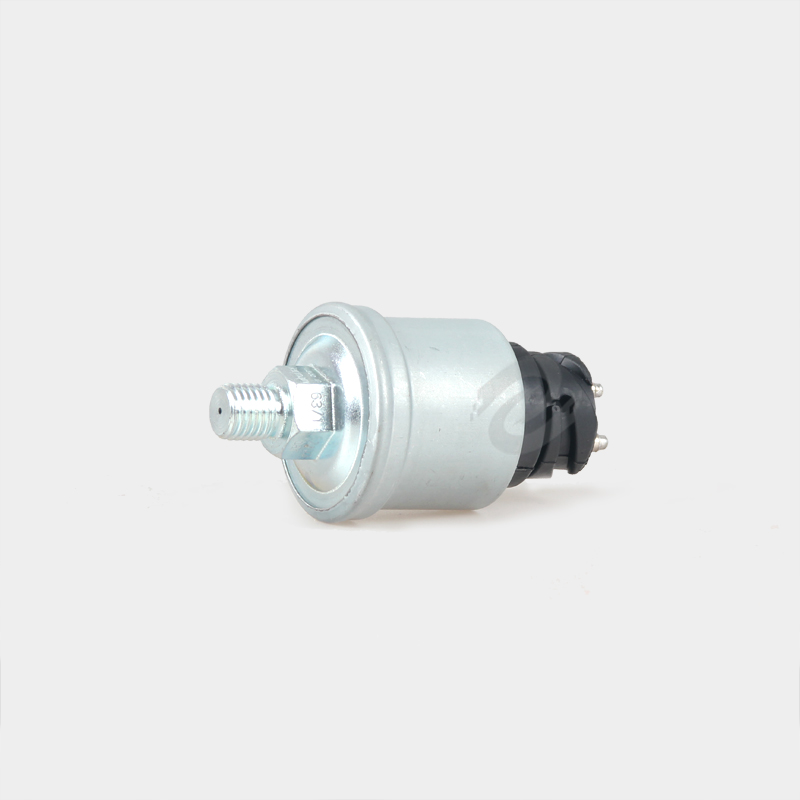

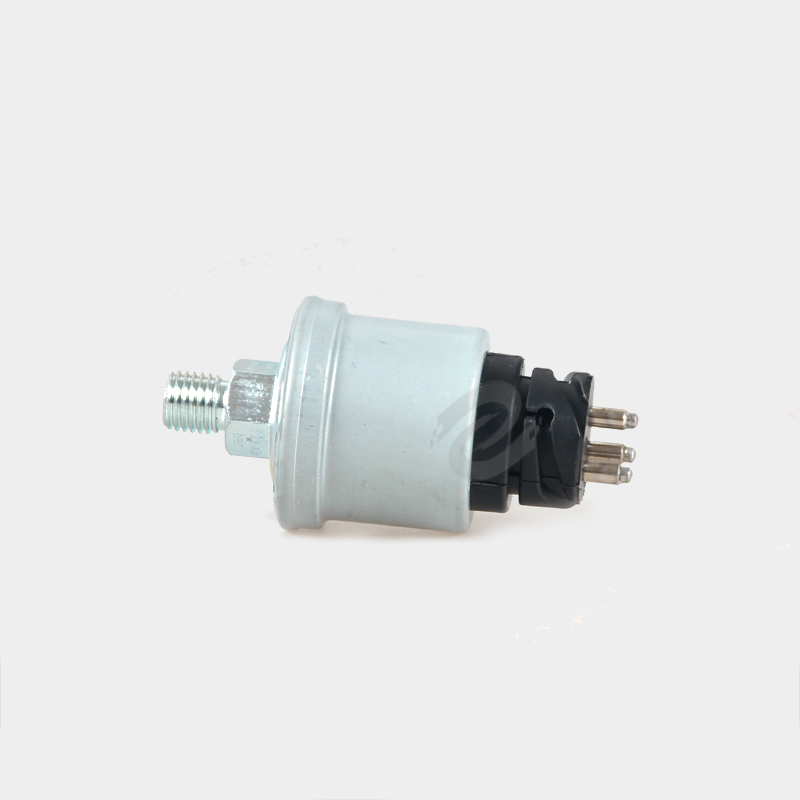

Eosin Universal Aem Oil Pressure Sensor with 3 Pin for Engine

OIL PRESSURE SENSORS

Availability:
Quantity:
  • M12*1.5
  • With
  • Spring Type
  • 3 Pole
  • Floating Ground
Product Description


Eosin Universal Engine Oil Pressure Sensor Sender 3 Pin 360-081-063-001C

For measuring different media in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is

supplied by a separate connection.Temperature senders can be fitted with an additional warning contact in order to indicate when the temperature limit has

been reached, as well as carrying out continuous measurement.

Technical Data

Version Spring Type
Measuring Range 0-10 Bar
Rated Voltage 6V to 24V
Warning Contact Close As Pressure Falls
Switching Capacity Of Warning Contact 5 W MAX, Noninductive
Operating Temperature -25°C To +100°C
Resistance Range 10 Ω to184 Ω

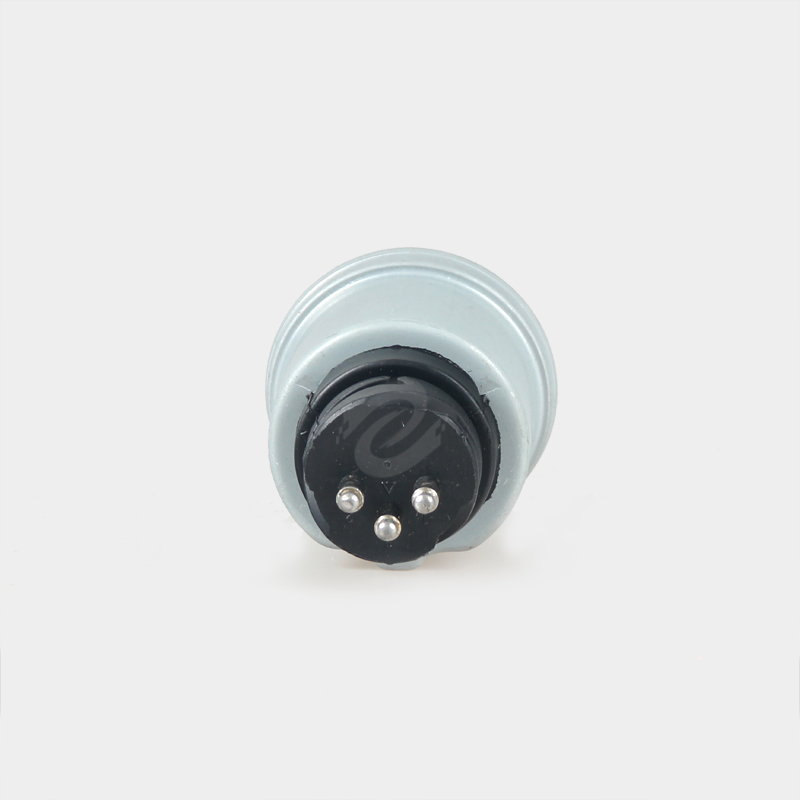

Connector 3 Pole
Application Marine Engines

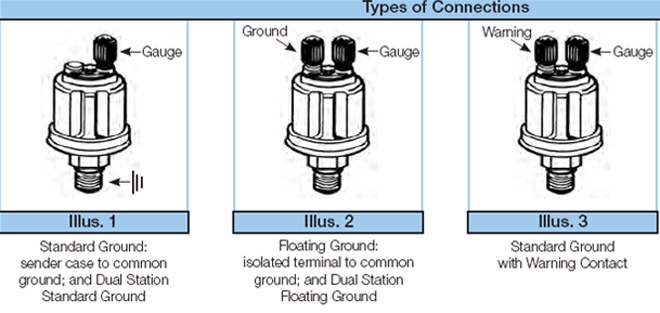

Floating Ground:isolated terminal to common ground

Installation Torqque

Thread Size Max Torque(Nm) Max Torque(Ft lb)
1/8-27 NPTF 30 22
1/4-18 NPTF 60 44
3/8-18 NPTF 60 44
M10*1.0 30 22
M12*1.0 40 29
M14*1.5 60 44
M16*1.5 80 59
M18*1.5 100 74

油压传感器
