Eosin Universal Marine Multifunction Gauge

OTHER GAUGES

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 52 mm Gauges

  • ABS

  • Marine engines Construction machines Gensets Vehicles

  • 9-32V

  • With

  • Other

Product Description

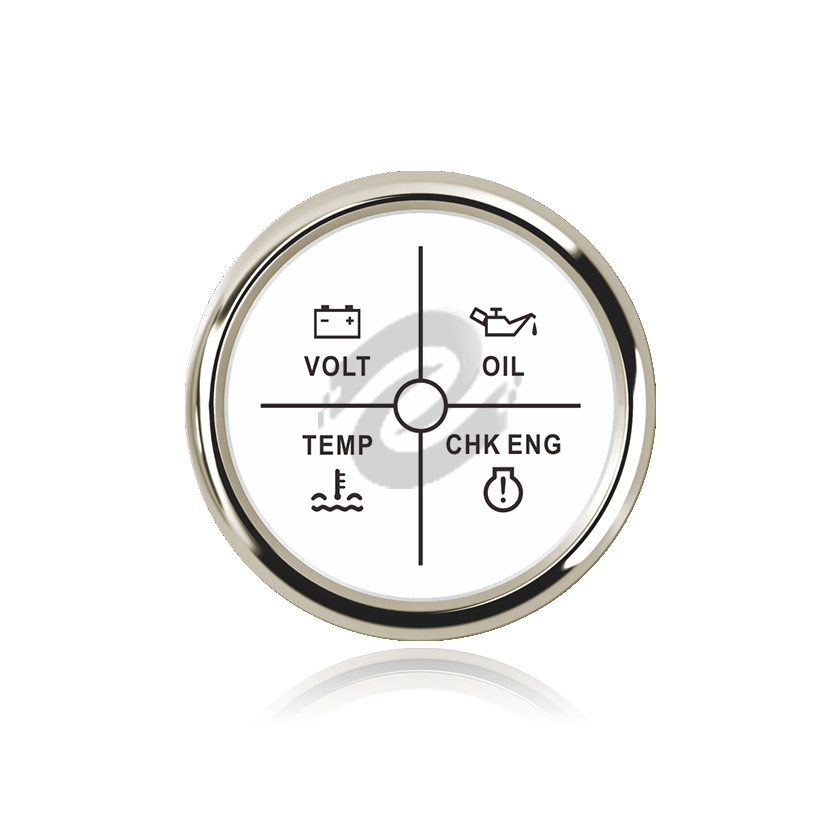

Eosin Marine Multifunction Gauge

The gauge is suitable for ships, vehicles and generator sets. The specification of the gauge based on the sensors.

The sensing device changes its resistance value according to the state of the controlling object.

Specification

Frame material: 316L stainless steel

Mounting hole diameter: 52 mm

Working voltage: 9-32V

Running current: ≤60ma

Working temperature: -30~+75°C

Storage temperature: -40~+85°C

Feature

● Protection class is IP67, the entire case is completely waterproof

● Excellent antifogging function

● 316 Stainless steel bezel with curved glass

● Standard red backlight

● Power supply has reverse connection protection, energy saving and environmental protection
