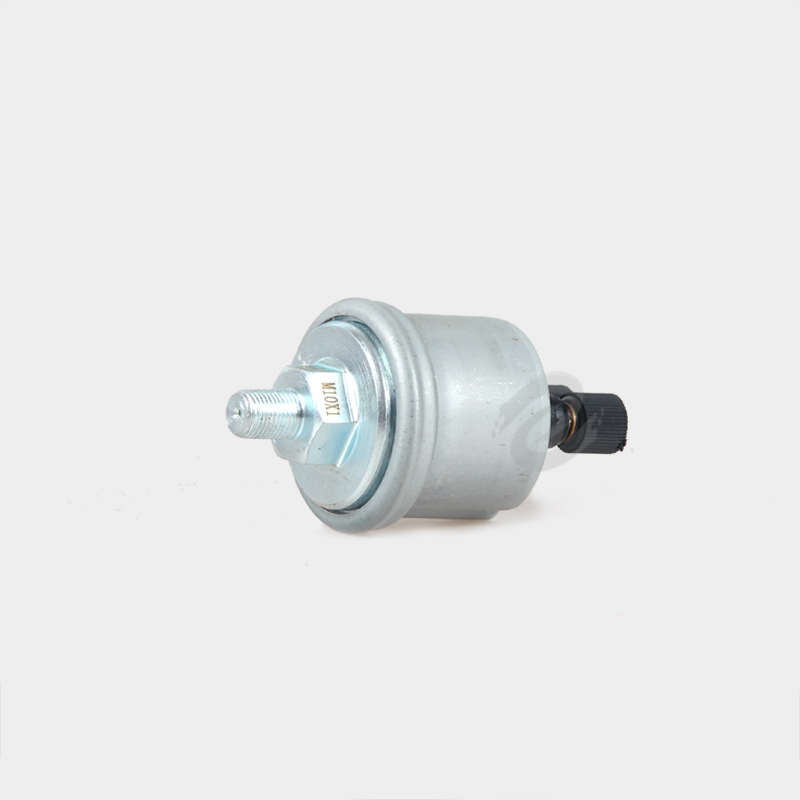

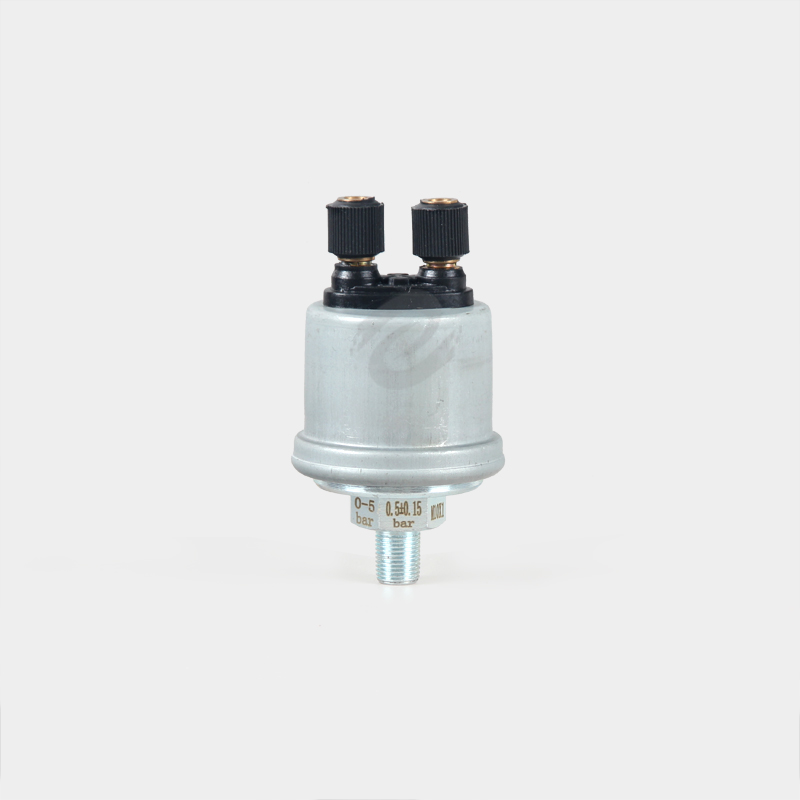

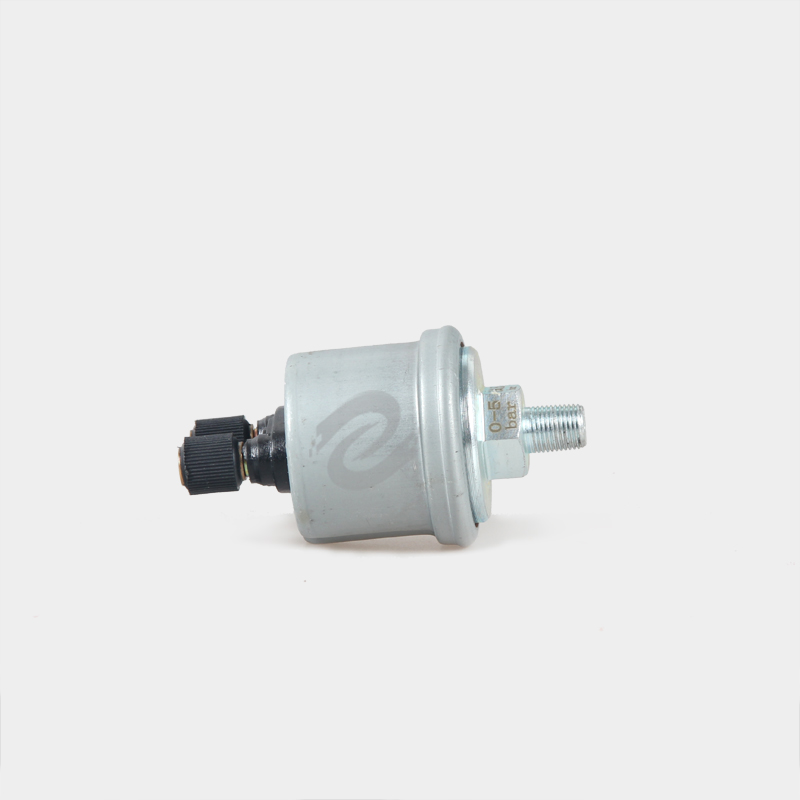

OIL PRESSURE SENSORS
Availability: | |
---|---|
Quantity: | |
M10*1
With
Spring Type
2 Pole

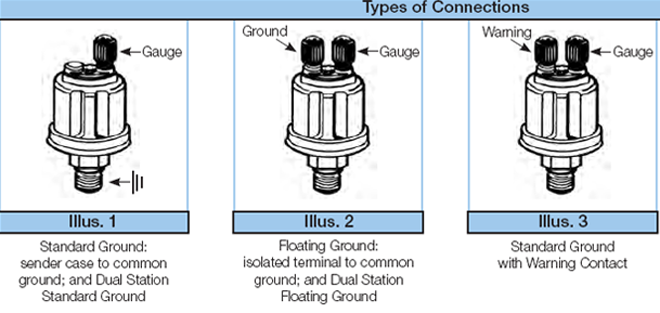

Standard Ground
For measuring different media in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is
supplied by a separate connection.Temperature senders can be fitted with an additional warning contact in order to indicate when the temperature limit has
been reached, as well as carrying out continuous measurement.
Version | Spring Type |
Measuring Range | 0-5 Bar |
Rated Voltage | 6V to 24V |
Warning Contact | Close As Pressure Falls |
Switching Capacity Of Warning Contact | 5 W MAX, Noninductive |
Operating Temperature | -25°C To +100°C |
Resistance Range | 10 Ω to184 Ω |

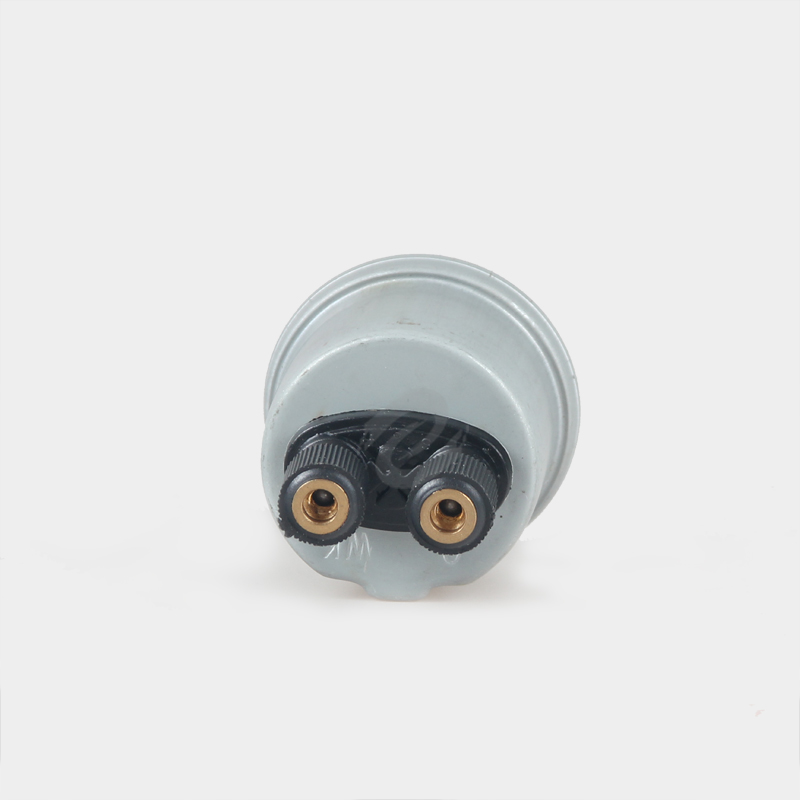

Connector | 2 Pole |
Application | Marine,Construction Machines,Genset,Vehicles |
Thread Size | Max Torque(Nm) | Max Torque(Ft lb) |
1/8-27 NPTF | 30 | 22 |
1/4-18 NPTF | 60 | 44 |
3/8-18 NPTF | 60 | 44 |
M10*1.0 | 30 | 22 |
M12*1.0 | 40 | 29 |
M14*1.5 | 60 | 44 |
M16*1.5 | 80 | 59 |
M18*1.5 | 100 | 74 |
