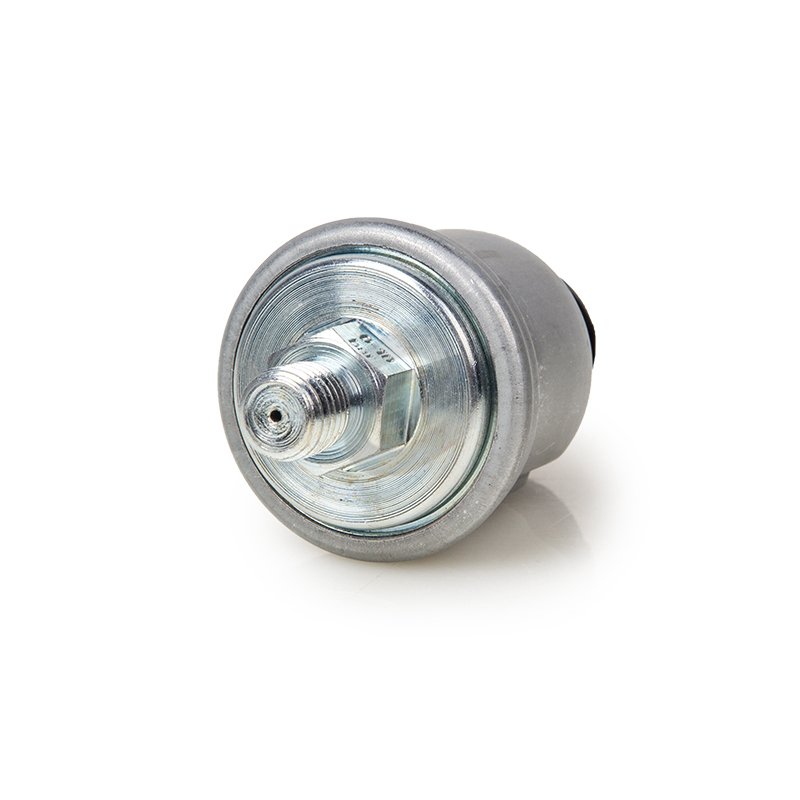

OIL PRESSURE SENSORS
Availability: | |
---|---|
Quantity: | |
360-081-063-001C
M12 X 1.5
With
Spring Type
3 Pole
Standard Ground
For measuring different media in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is
supplied by a separate connection.Temperature senders can be fitted with anadditional warning contact in order to indicate when the temperature limit has
been reached, as well as carrying out continuous measurement.
Technical Data
Version | Spring Type |
Measuring Range | 0-10 Bar |
Rated Voltage | 6V to 24V |
Warning Contact | Close As Pressure Falls |
Switching Capacity Of Warning Contact | 5 W MAX, Non inductive |
Operating Temperature | -25°C To +100°C |
Resistance Range | 10 Ω to184 Ω |
Connector | 3 Pole |
Application | Marine,Construction Machines,Genset,Vehicles |
Installation Torque
Thread Size | Max Torque(Nm) | Max Torque(Ft lb) |
1/8-27 NPTF | 30 | 22 |
1/4-18 NPTF | 60 | 44 |
3/8-18 NPTF | 60 | 44 |
M10*1.0 | 30 | 22 |
M12*1.0 | 40 | 29 |
M14*1.5 | 60 | 44 |
M16*1.5 | 80 | 59 |
M18*1.5 | 100 | 74 |
