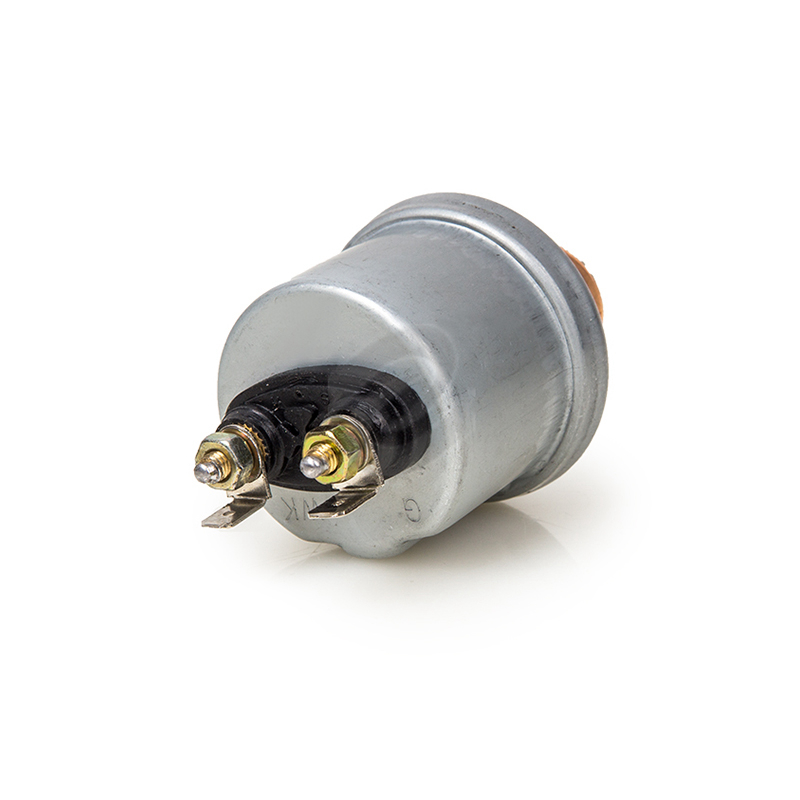

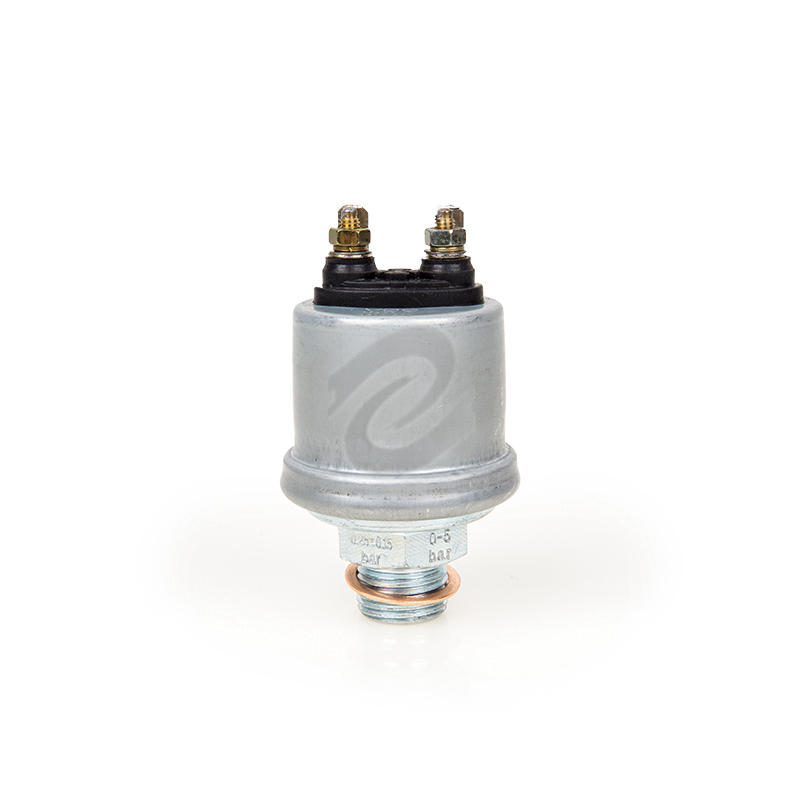

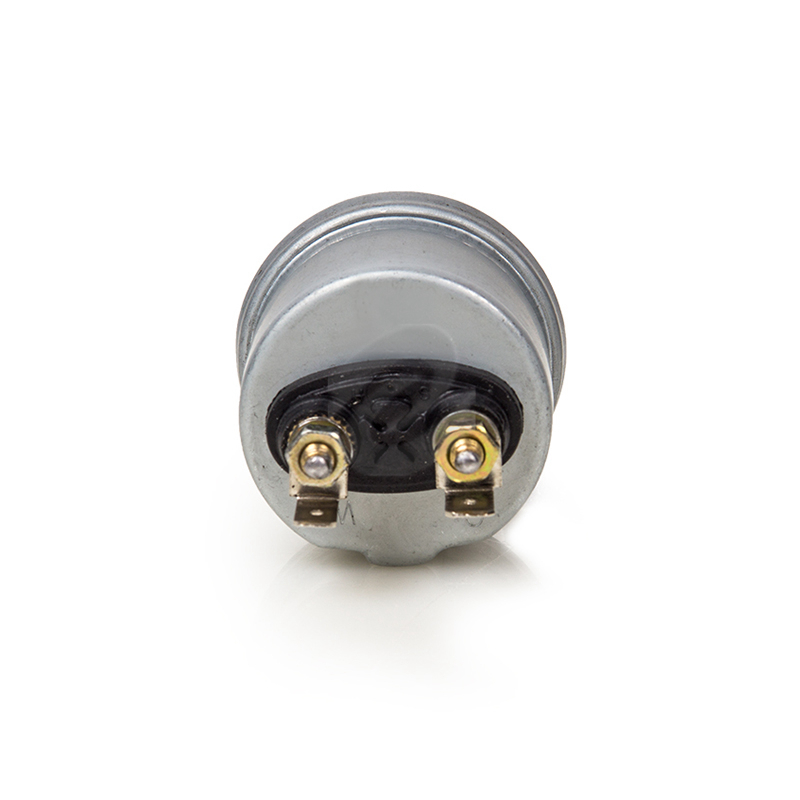

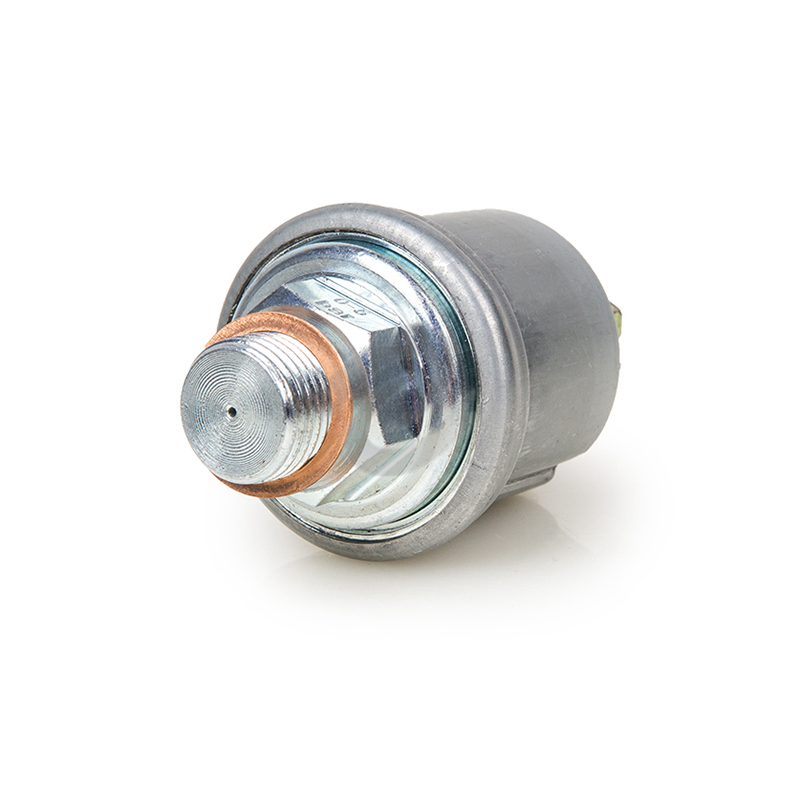

M18 x 1.5 360-081-030-053C 5BAR double head diesel generator VDO oil pressure sensor

OIL PRESSURE SENSORS

Availability:
Quantity:
  • 360-081-030-053C
  • M18 x 1.5
  • With
  • Spring Type
  • 2 Pole
  • Standard Ground
Product Description


Eosin Engine Oil Pressure Sensor With Warning Contact 0-10 bar

For measuring different media in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is

supplied by a separate connection.Temperature senders can be fitted with anadditional warning contact in order to indicate when the temperature limit has

been reached, as well as carrying out continuous measurement.

Technical Data

Version   Spring Type
Measuring Range   0-5 Bar
Rated Voltage 6V to 24V
Warning Contact Close As Pressure Falls
Switching Capacity Of Warning Contact 5 W MAX, Non inductive
Operating Temperature -25°C To +100°C
Resistance Range 10 Ω to184 Ω
Connector 2 Pole
Application Marine,Construction Machines,Genset,Vehicles

Standard Ground With Warning Contact

Installation Torque

           Thread Size                  Max Torque(Nm)              Max Torque(Ft lb)
           1/8-27 NPTF                        30                     22
           1/4-18 NPTF                      60                     44
           3/8-18 NPTF                      60                     44
              M10*1.0                      30                     22
              M12*1.0                      40                     29
              M14*1.5                      60                     44
              M16*1.5                      80                     59
              M18*1.5                     100                     74

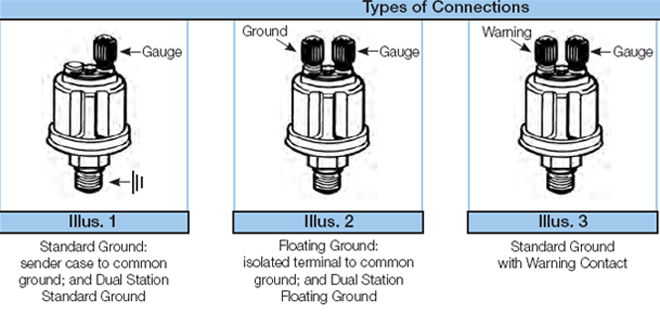

油压传感器
