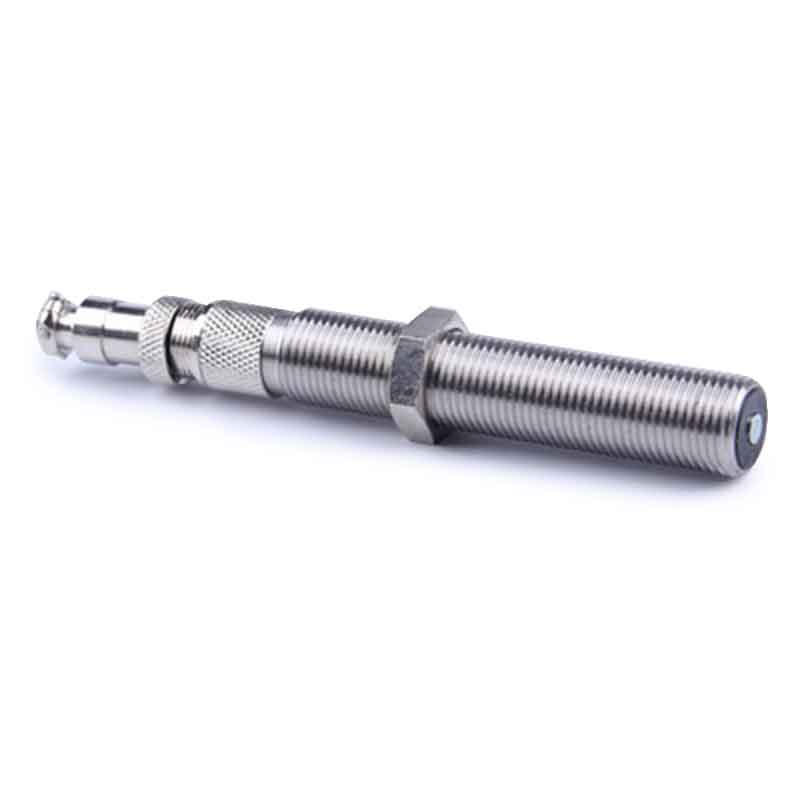

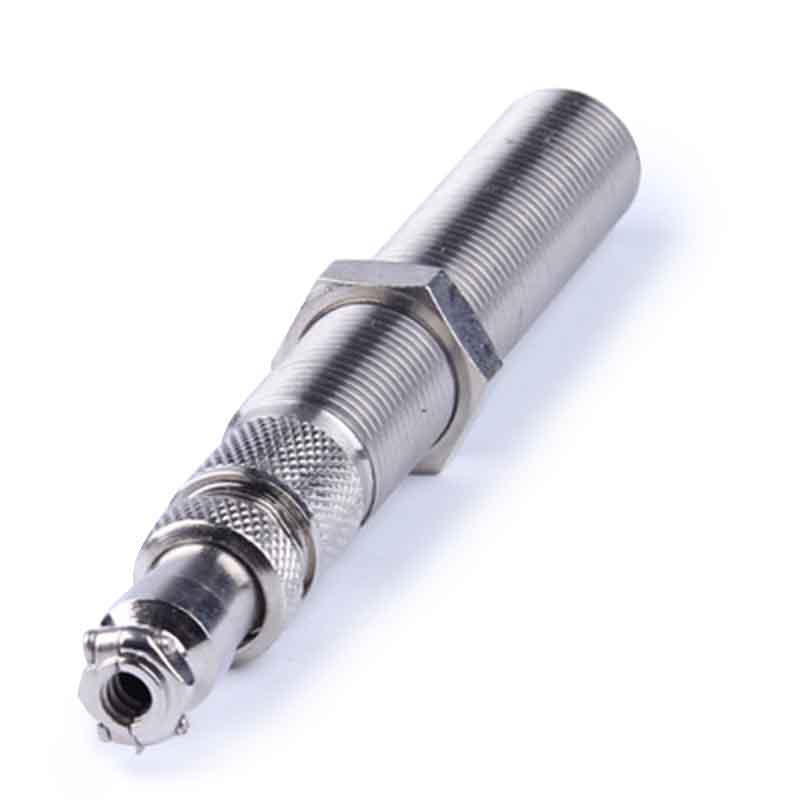

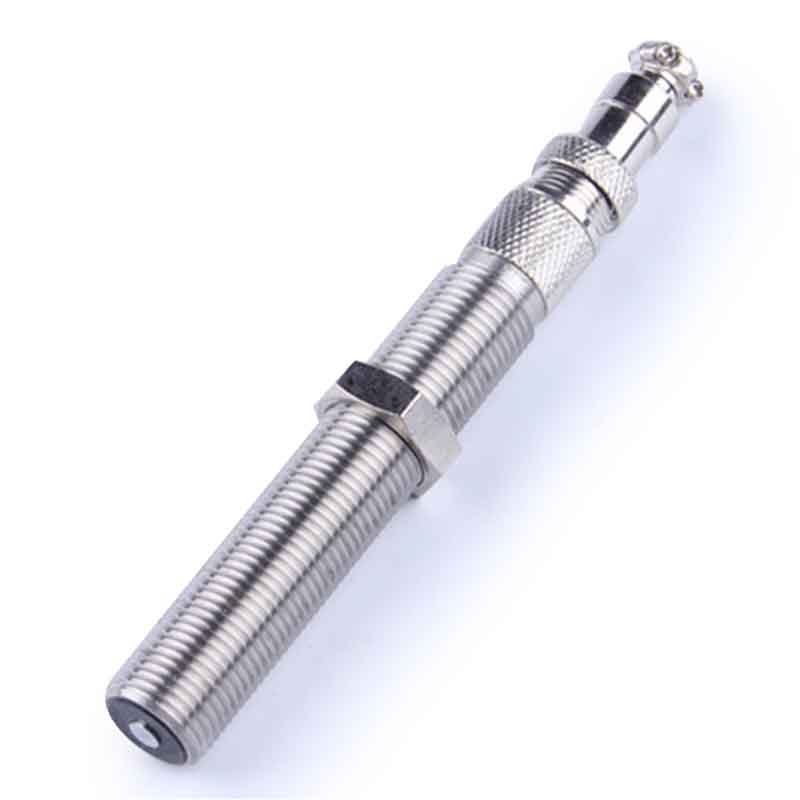

MSP677
EOSIN
5/8 - 18 UNF
4 - 24V

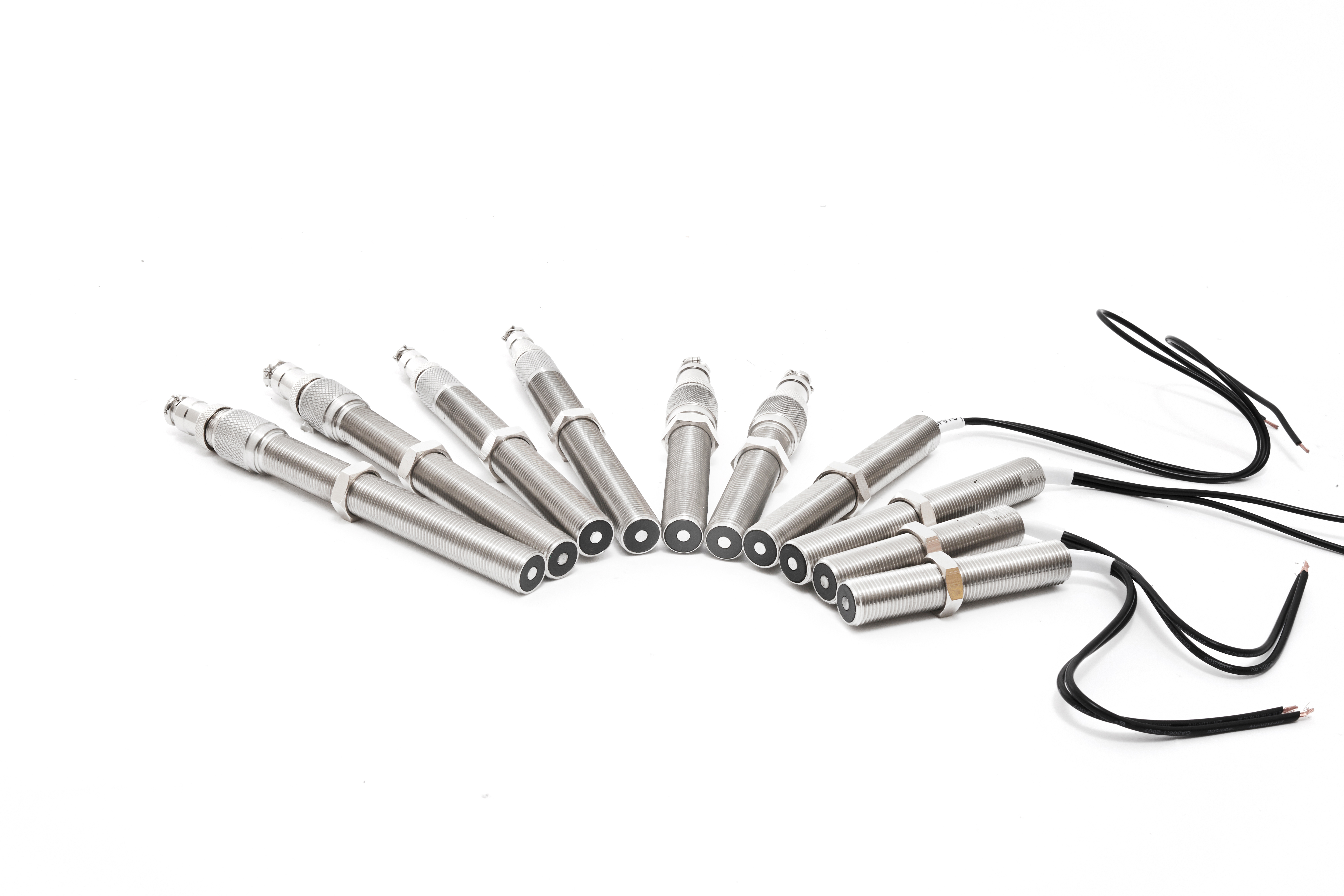

EOSIN’s Magnetic Speed Sensors are a rugged and economic solution for detecting engine speed. Sturdier than plastic sensors and outperforming semiconductor-type devices at high temperatures, EOSIN’s epoxy encapsulated sensors are unaffected by dust and dirt. Multiple sizes and customizable configurations are available.
Model No | Thread | BODY LENGTH | THREAD LENGTH | CABLE LENGTH | CONNECTOR TYPE |
MSP676 | 5/8 - 18 UNF | 79mm | 70mm | N/A | MILITARY |
Features
The interior is welded by a precision spot welding machine,firm and reliable
Brass nickel plated housing (anti-oxidation)
Solid Probe (Robust and Durable)
Protection level IP68
Resistance value 1K ohm, other resistance values can be customized
With car 2P plug
Material
Cap: Rubber
Lead: 0.5 square copper multi-strand flame retardant wire
Lead length: 300-350mm
Lead Sleeve: Silicone Fiberglass Tube (-60-200℃)
Housing and Mounting Nut: Nickel-plated brass
Installation thread
M16*1.5 or M18*1.5, others can be customized
Gear Requirements
Module:>=2 Material: Magnetic Metal
Installation diagram
Wiring
no sequence
① Black wire: signal wire
② Black wire: negative or ground

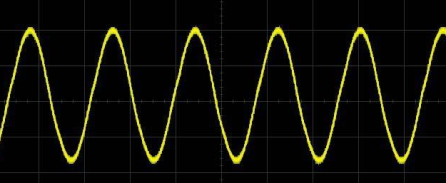

Output characteristics
Sine wave pulse signal, the amplitude is related to the speed, about 2V-10V
Usage scenarios
measuring rotational speed or speed of generator sets, engines, vehicles, ships, motors, machine tools, construction machinery, etc.
